Air Cooled Servo Voltage Stabilizers
“Stab Servo Power Pvt. Ltd.” is one of India's leading Power Conditioning and Power Saving equipment manufacturers in Bangalore. The company designs, develops, manufactures and markets power conditioning and power saving electrical equipments. We are the well-known company for air cooled servo voltage stabilizer manufaturers in Bangalore, India. “Stab Servo Power Pvt. Ltd.” is an established brand known for excellence in quality. Our products have a large satisfied customer base in private and public sector manufacturing industry & service industry.

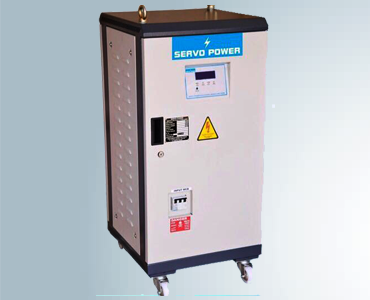

Servo Voltage Stabilizer - Air Cooled
The air cooled servo stabilizer is manufactured using highest quality raw materials and advanced technology that ensure notable features such as high durability, tensile strength, superior performance, corrosive resistant and many such. We are one of the Bangalore’s best manufacturers of air cooled servo voltage stabilizers.
Being a reputed air cooled servo stabilizer manufacturers in Bangalore, we offer our complete range in standard as well as custom specifications at competitive rates. These stabilizers find its extensive use in various sectors. Our products adhere to high standards of quality and that is why we have gained a strong reputation as air cooled servo stabilizers manufacturers in Bangalore. Moreover, air cooled servo stabilizers are manufactured according to advanced development.
Technical Specifications:
| Capacity | 1KVA - 25 KVA 1Phase 3 KVA - 100 KVA 3 Phase(Air Cooled) 3 KVA - 1500 KVA 3 Phase(Oil Cooled) |
| Input Voltage Range | 170 V - 270 V AC 1Phase 340 V - 460 V AC 3Phase |
| Other Input Voltage Range | 295 V - -465 V AC 3Phase 360 V - 460 V AC 3Phase |
| Output Voltages | 220 V / 230 V AC 1Phase 380 V / 400 V / 415 V AC 3Phase |
| Output Voltage Regulation | +- 1% at No Load - Full Load |
| System | Unbalances 4 Wire System |
| Operating Frequency | 47 Hz - 53Hz |
| Speed of Correction | 70 V / Sec - Phase to Phase 35 V / Sec - Phase to Neutral |
| Wave Form Distortion | Nil |
| Output Wave Form | True Reproduction of input |
| Insulation | Class "B" |
| Operating Temperature | 00 - 450 C Ambient |
| Type of Cooling | Naturally Air Cooled upto 100 KVA 3 Phase Oil Cooled uoto 1500 KVA 3 Phase |
| Short Circuit Period & percentage | 300 % for 250 m.sec |
| Mode of Control | Automatic / Manual |
| Over Load Capacity | 120% for 10 Min |
| System Construction | As Per IS : 9815 |
| Protections | Low Voltage Protection High Voltage Protection Short Circuit Protection Single Phase Preventor |
| Panel Controls | LCD Display Scrolling Type to Measure Output Voltage, Input Voltage, Output Current , Frequency |
| Indications | Input - ON Input - HIGH Output - ON Input -LOW Output - CUT -OFF |
| Optional Features | Frequency Trip (High / Low) MCB / MCCB for Output Bypass Switch Surge / Spikes Suppressor Line Filters |
Features:
Quick Response
High Overload capacity
Fast Correction
No Hunting, No Oscillations,
No Noise Generation
Advantages
Better efficiency of ≥ 98% achieved by use of prime grade Lamination.
Electrolytic copper wires of 99.99% purity.
Special designed transformers to minimize losses.
Also, Special sensing circuit to ensure constant Output Voltage
Even with distorted input from D.G. set. Confirms to stringent Defence specifications. Tropicalised design
